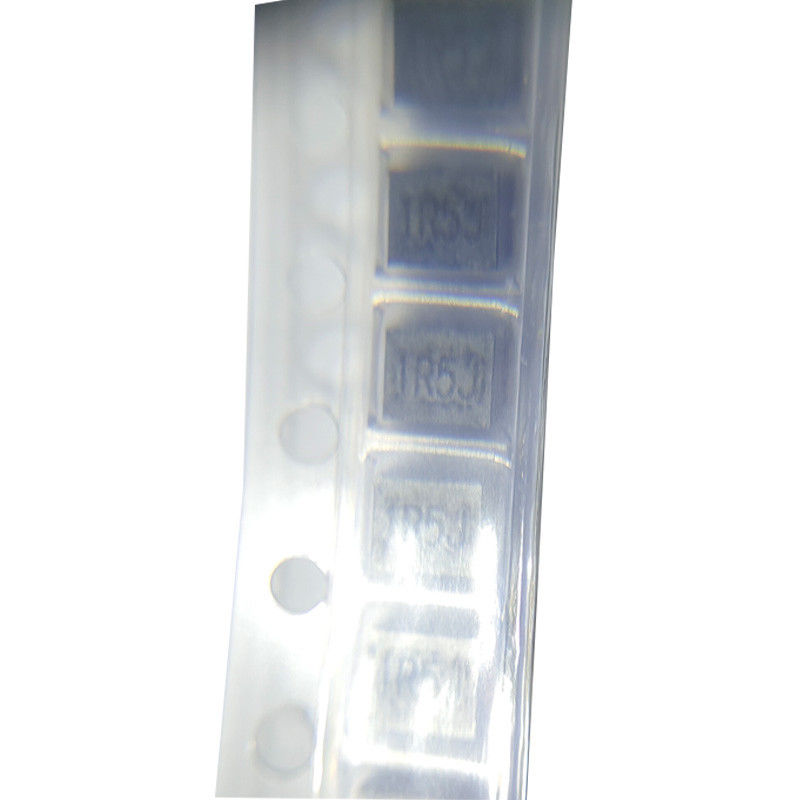

JENIS
|
KETERANGAN
|
|---|---|
|
Kategori
|
Induktor, Kumparan, Tersedak
Induktor Tetap
|
|
Mfr
|
Perusahaan TDK
|
|
Seri
|
NLV-PF
|
|

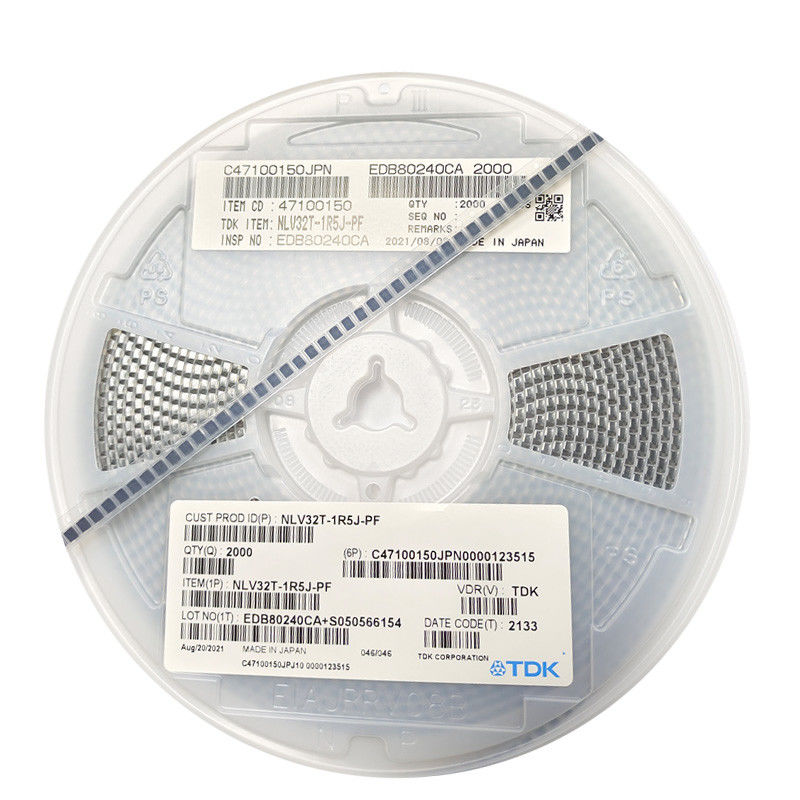

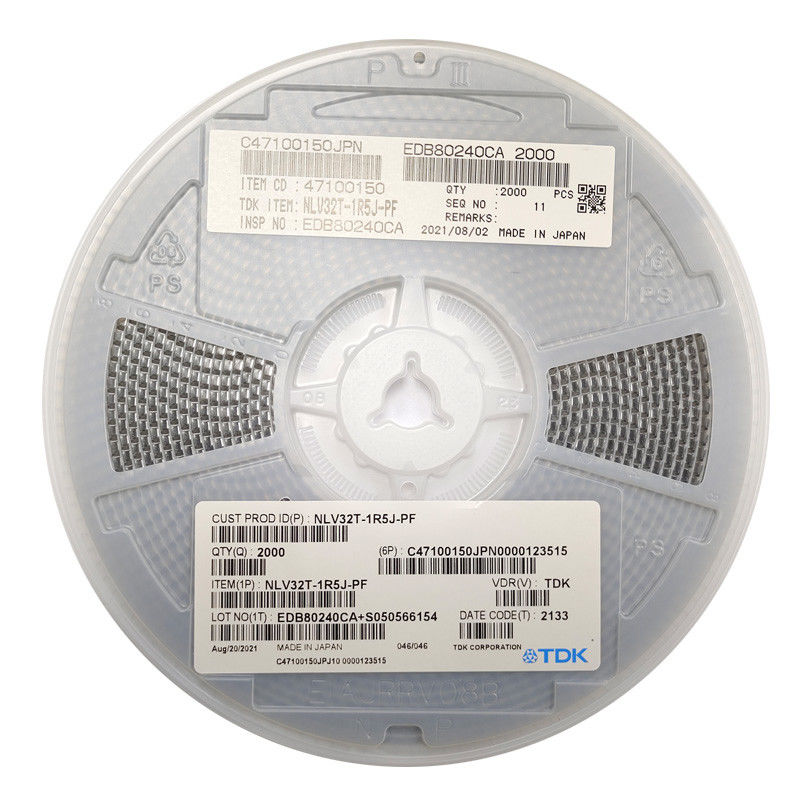

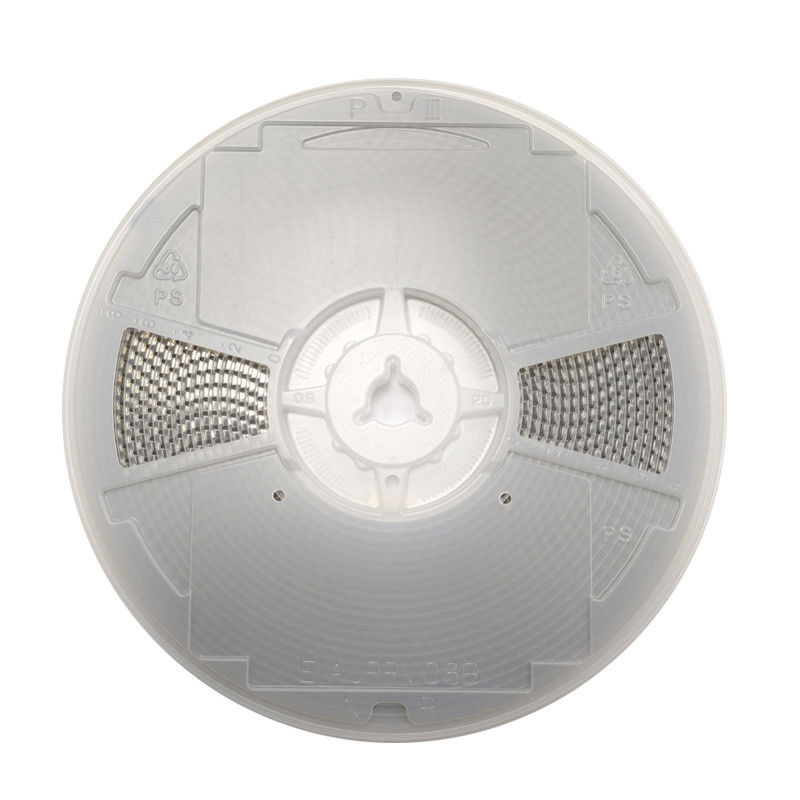

Kemasan
|
Pita & Gulungan
|
|
Status Produk
|
Bukan Untuk Desain Baru
|
|
Jenis
|
Inti Drum, Wirewound
|
|
Bahan - Inti
|
ferit
|
|
Induktansi
|
1,5 µH
|
|
Toleransi
|
±5%
|
|
Peringkat Saat Ini (Amps)
|
370 mA
|
|
Arus - Saturasi (Isat)
|
-
|
|
Melindungi
|
Tidak terlindungi
|
|
Resistensi DC (DCR)
|
850mOhm Maks
|
|
Q @ Frekuensi
|
30 @ 7,96MHz
|
|
Frekuensi - Resonansi Diri
|
85MHz
|
|
Peringkat
|
-
|
|
Suhu Operasional
|
-40°C ~ 105°C
|
|
Frekuensi Induktansi - Tes
|
7,96 MHz
|
|
Tipe Pemasangan
|
Permukaan gunung
|
|
Paket / Kasus
|
1210 (3225 Metrik)
|
|
Paket Perangkat Pemasok
|
1210
|
|
Ukuran / Dimensi
|
0,126" L x 0,098" W (3,20mm x 2,50mm)
|
|
Tinggi - Duduk (Maks)
|
0,094" (2,40mm)
|
